Diagnose Your Breville With an Energy Meter Plug

In this guide, we’ll explore how you can use just an energy meter plug to identify problems with your machine, specifically to get early indications of a leak, diagnose problems with your triac board and other heating-related issues. This allows those of you out there that are not technically minded, or are not confident enough to take your machine apart to at least gain some insight into why your machine isn't working and potentially, if you have a leak.

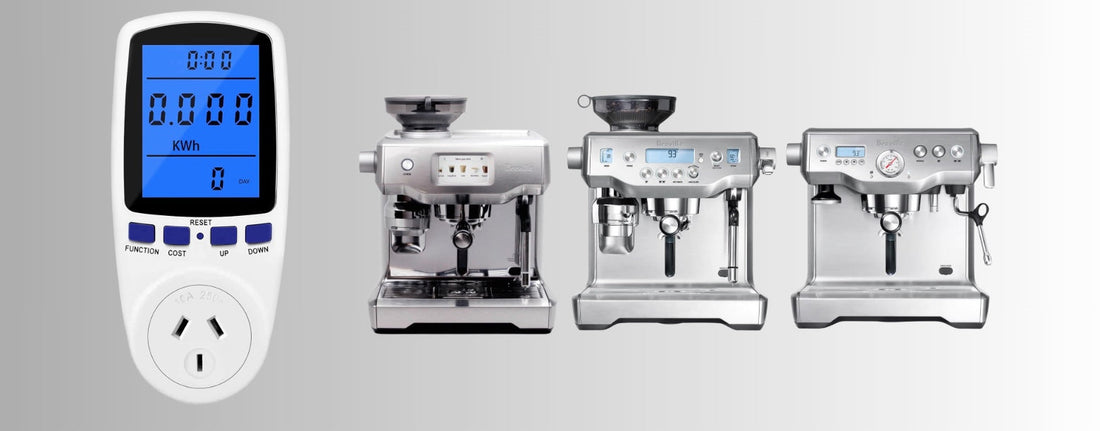

An energy meter plug is a simple yet effective tool to monitor the power consumption of your coffee machine and identify potential issues with the boilers. I have mine plugged in all the time. Not only to diagnose machines, but also to alert on any potential faults caused by leaking seals inside. It's an eye into what is going on under the hood if you like, and a helpful tool to help identify problems before they spread and end up costing you a fortune down the track.

okay, let's assume you've been out and purchased one - here is a link to the one (affiliated) I use in my videos:

Energy Meter

You can set it to monitor amps or watts usually, but for now, let's work with watts.

There are three heating elements inside these machines which are rated as follows:

• Steam boiler = 1,300 W
• Brew Boiler = 780 W
• Grouphead = 200W

With this information you can now 'visualise' with simple math what your machine is doing inside, so you'll hopefully be able to notice when things aren't right.

For example, before you switch the machine on at the panel, you should only see a very low value such as 2.1 W. This is a good standby value. If you are seeing a considerably higher value, then you certainly have a problem.

Let's say it reads 1,300 W when switched off. This would indicate the steam boiler is stuck on (due to a faulty triac board). Turn it off at the wall immediately as this can and will eventually blow the thermal fuse (expensive repair).

Likewise, if it's switched on, but you never see it go above 1500 W you may well have a fault with your brew boiler. You can then look into the temps within the service menus to verify this.

So, you get the idea, but sometimes you might see half values i.e. 650 W (when it's powered off).

Diagnosing Half Wattage Issues

If your power meter shows about half the normal draw — say 650 W when the steam boiler should be pulling around 1300 W — that usually points to a faulty opto-isolator on the triac board.

What’s happening is that the damaged opto only triggers the main triac on one half of each AC cycle. In other words, the element is being powered 25 times a second instead of 50, so it’s effectively running on half power. The boiler still heats, but much more slowly, because it’s only getting energy for half the time.

Typical signs include:

• The boiler taking much longer to reach temperature

• A steady power reading around half of what you’d expect

• Slightly uneven or sluggish heating

In most cases, it’s just the opto-isolator that’s failed — swapping it out usually restores full power, and the main triac itself doesn’t need replacing.

Conclusion

Using an energy meter plug is a straightforward and effective way to monitor boiler operation and identify faults in your Breville Dual Boiler coffee machine. Regular diagnostics can help you catch issues early and ensure your machine continues to perform at its best. If you suspect problems with the triac board or other components, seek professional repair or alternatively, if you have soldering skills, check out my shop for the triac kits or Survival kits to fix it yourself. I also have a video explaining the process here: How to Diagnose and Repair the Triac Board on the Breville Dual Boiler
