Diagnosing Heat Problems on the BES920

Is your Breville Dual Boiler running dangerously hot, or has your steam suddenly disappeared? Before you start swapping parts, you need a precise diagnosis. Because the BES920 utilizes a Triple Heat System—incorporating a dedicated espresso boiler, a steam boiler, and an actively heated group head—troubleshooting requires a systematic approach using the machine's internal software and a multimeter.

Step 1: The First Check—Boiler Water Levels

The very first thing to do whenever you have an underheating problem is to check the water levels in the boilers. If the machine detects an empty boiler, it will not engage the heaters to prevent damage.

• How to enter: Turn the machine off at the wall. Press and hold the EXIT and MANUAL buttons while plugging the machine back in.

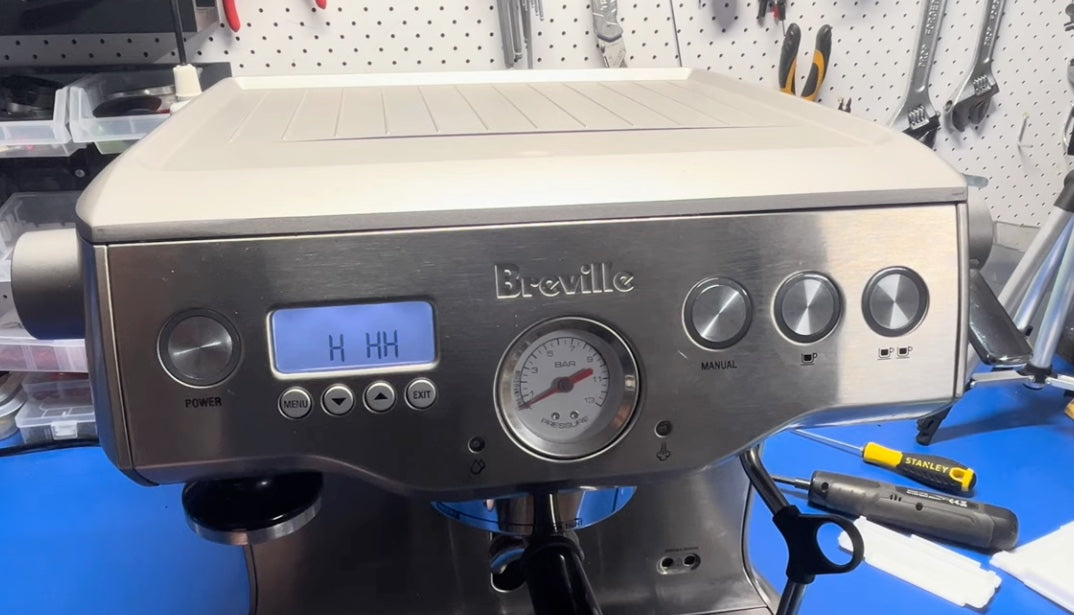

• Check Item 4: Press MENU until you reach Item 4. The LCD will display status markers like LLL or HHH.
• These correspond to Coffee boiler, Steam Low (for heat) and Steam High (for pump) * denotes the coffee boiler as we don't care about the status here.

  • *LL: This indicates the boiler is Empty. If the boiler is empty, the heating element will not turn on.
  • *HH: This indicates the boiler is Full.
  • *HL: Means the boiler is half full - or at least thinks it is (see false trap)
  • *LH: Impossible to have water only at the top of the boiler so this is a red flag that the red probe is contaminated and reprot incorreclty (replace probes asap)

The "False Full" Trap: Be aware that during descaling, conductive solution can coat the probes, tricking the machine into showing *HL even if the boiler is empty. This leads to the elements "dry firing" and blowing the thermal fuse.

Step 2: Pinpoint the Element in Self-Check Mode

Once you've confirmed water is present, you need to see real-time data for each zone.

• Navigation: In the same Self-Check menu, press MENU to scroll to items 5, 6, and 7 to see real-time readings:
  • Item 5 (Coffee Boiler): Target ~95°C / 203°F.
  • Item 6 (Steam Boiler): Target ~135°C / 275°F.
  • Item 7 (Group Head): Target ~93°C / 199.4°F.

Step 3: The Over-Temp Diagnosis (Running Too Hot)

If an element is exceeding its target (e.g., the steam boiler is over 136°C or the lid feels hot while off), move to the relevant circuit on the Triac Board. This board manages power to the heaters.

With the machine in standby mode (plugged in but powered off at the front button), measure the AC voltage between the Blue Neutral wires and the specific wire for the overheating zone:

• Orange Wire: Group Head (SHHC).
• Red Wire: Coffee Boiler (CBC).
• Brown Wire: Steam Boiler (SBC).

Decoding Your Voltage Readings:

• Full Mains Voltage: If you see full voltage (e.g., 240V or 120V) in standby, the triac has failed "short." Replace both the triac and the optoisolator (opto) on that circuit.
• Lower/Half Mains Voltage: If you measure roughly half your mains voltage, the optoisolator has failed. Replace only the optoisolator on that circuit.

Step 4: The Under-Temp Diagnosis (Running Cold)

If an element stays at room temperature (approx. 20°C / 68°F), the circuit is likely broken, often by a safety component blowing due to a failing triac.

1. Check Resistance: Unplug the machine. Measure ohms across the element wires. If you see infinite resistance (Open Circuit), the thermal fuse or thermostat has blown.
2. The Required Fix: If the zone is cold, you will need to replace the respective thermal fuse (The steam fuse is rated at 167°C).
3. Crucial Note: You must also perform the Triac board fixes mentioned above; otherwise, the new fuse will likely blow as soon as you power the machine back on.

Reference Table: Element Resistance Specifications

Use these values to verify if your elements are intact:

By following these diagnostic steps—starting with water levels and moving through live electrical testing—you can accurately identify the root cause of your heating issues and get your machine back in service.
