Barista Touch / Pro no water or steam flow: replacing a scale-blocked ThermoJet boiler

If your Breville Barista Touch or Barista Pro has stopped producing both water and steam, one common cause is a scale-blocked ThermoJet boiler. The ThermoJet in these machines is a printed heater: water passes through a very narrow channel formed into the heater plate. Once that channel blocks with scale, the machine can sound like it is trying to pump, but little or no water can pass through the hot water or steam path.

Model note: The same no-flow fault pattern and diagnostic approach also apply to other Breville/Sage machines that use a similar printed ThermoJet heater, including Barista Pro models. Panel removal and screw locations can differ between models, even where the printed ThermoJet replacement part is shared, so confirm compatibility against the exact machine before ordering parts.

This fault is different from a machine that starts water or steam flow and then stops after about five seconds. A five-second stop is commonly a flow meter problem because the control board is not seeing water movement. A blocked ThermoJet boiler is more likely when the machine has no real water flow and no steam flow even though water can be confirmed at the boiler inlet.

Safety note: This guide is for experienced repairers. Unplug the machine before removing covers or disconnecting parts. Let the machine cool fully, drain the tank, and keep water away from electrical parts. The inlet-flow confirmation step requires briefly running the machine with the top open and a hose disconnected; only do this if you can keep the hose controlled, keep the work area dry, and avoid touching internal wiring or hot parts.

Symptoms this repair can solve

• No water from the group head.
• No steam from the steam wand.
• Pump noise but little or no actual flow.
• Water can be confirmed before the ThermoJet inlet, but not through the heater path.

If the machine flows briefly and then stops after around five seconds, check the flow meter and its wiring before assuming the ThermoJet is blocked.

Tools and parts

• Replacement printed ThermoJet boiler / heater assembly used by Barista Touch / Pro models.
• Phillips screwdriver.
• Needle-nose pliers or hose clip pliers.
• Small jug or container for the inlet-flow test.
• Towels for catching water.
• Phone camera for recording hose and wire routing before removal.

1. Remove the front screws

Start with the machine unplugged, cool, and with the water tank removed. Remove the drip tray and any loose accessories so the machine can be handled safely. The two front screws release the front edge of the upper cover assembly.

2. Remove the rear lid screws

There are three screws across the rear top panel. Remove these before trying to lift the cover. If the lid does not move freely, stop and check for missed screws rather than forcing the plastic clips.

3. Identify the ThermoJet boiler

Once the top is removed, the ThermoJet heater is the round metal assembly with the printed spiral heater pattern. Take photos before disconnecting anything. The hose routing matters, and several hoses sit close together around the heater.

4. Disconnect the ThermoJet inlet pipe

The inlet pipe is the hose feeding water into the ThermoJet. Release the retaining clip carefully and pull the hose free without tearing the silicone line. Have a towel ready because residual water can drain from the hose or fitting.

5. Confirm water reaches the boiler inlet

Warning: this check involves briefly running water inside an open, powered machine. Only perform it if you are experienced working around live appliances. Keep hands, tools, and loose hoses away from wiring and hot parts, hold the hose securely in a jug, and stop immediately if water sprays or leaks inside the machine.

Place the disconnected inlet pipe into a small jug and briefly start a shot only long enough to confirm whether water is reaching the ThermoJet inlet. If water flows into the jug, the pump and upstream water path are working, and the blockage is likely inside the ThermoJet heater or downstream from it.

If no water reaches this hose, stop and diagnose the tank, pump, flow meter, and upstream hoses first. Replacing the ThermoJet will not fix a machine that is not delivering water to the ThermoJet inlet.

6. Remove the ThermoJet mounting screws

Before removing the heater, label or photograph every hose and wire connection. Remove the ThermoJet mounting screws, then disconnect the remaining hoses and electrical connections needed to free the assembly. Keep the original screw positions grouped so reassembly is straightforward.

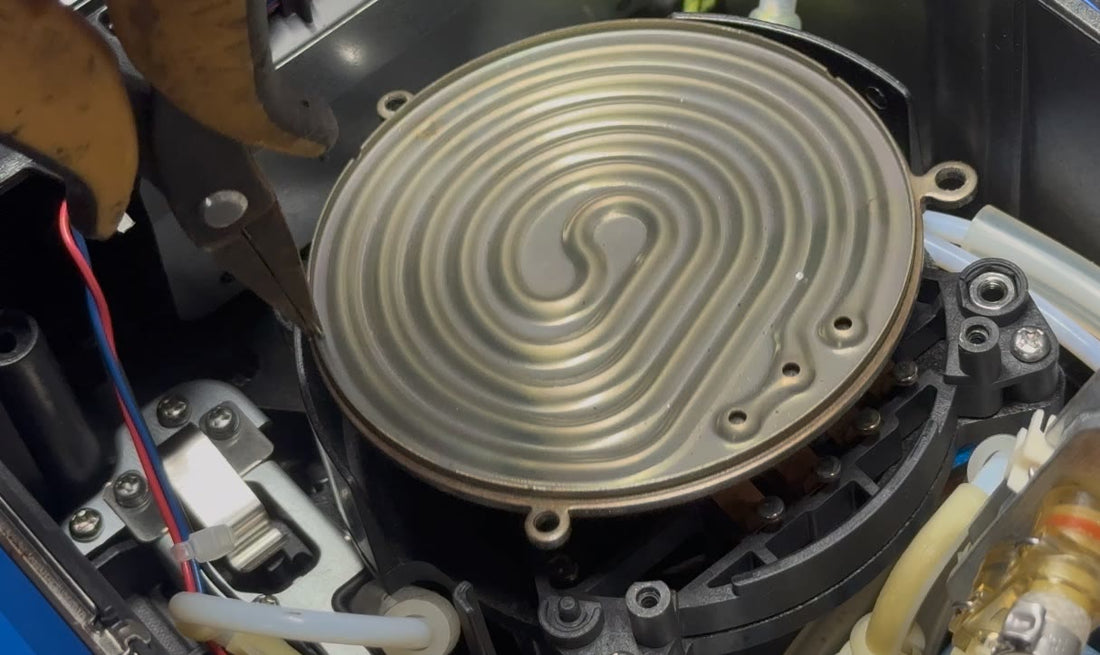

7. Lift out and replace the ThermoJet

Lift the ThermoJet assembly out of the machine and compare it with the replacement before installing the new part.

With the heater removed, you can use a short piece of clean flexible tube on the single-hole water channel to check whether the ThermoJet is blocked. Blow gently through the tube. If air will not pass through the channel, the printed heater path is blocked internally. If the restriction is only a partial blockage, you can sometimes blow through it or inject a small amount of descale solution into the channel to help clear it. If the ThermoJet is fully blocked, this usually does not work; in most cases, replacement is still needed. This check is only to confirm the fault before fitting the replacement.

Transfer any required fittings or seals only if they are in good condition. Refit the replacement ThermoJet in the same orientation, reconnect the hoses, and make sure all clips are seated correctly.

8. Why these boilers block so easily

The cutaway explains why this fault is common on Barista Touch, Barista Pro, and other ThermoJet models. The internal water path is a narrow printed channel, not a large open boiler chamber. Once scale builds up inside the channel, the machine may not be able to push water or descale solution through it. In severe cases, replacement is more realistic than trying to chemically clear the blockage.

Reassembly and test

1. Check every hose is fully seated and clipped.
2. Check all wiring is back in its original position and away from hot or moving parts.
3. Refit the top cover before normal operation.
4. Refill the tank and run water through the group head.
5. Test steam flow after the water path is confirmed.
6. Watch carefully for leaks around the ThermoJet fittings during the first test.

If water and steam flow return after replacement, the original ThermoJet was likely blocked internally by scale. If the machine still stops after around five seconds, return to flow meter diagnosis rather than replacing more heater parts.
