Ceme Two-way Solenoid Valve for Breville BES870, 980 and 990 Models

Two-Way Solenoid Valve – For Breville Barista Express & Oracle Models

SP0022918 - Compatible with: BES870, BES980, and BES990

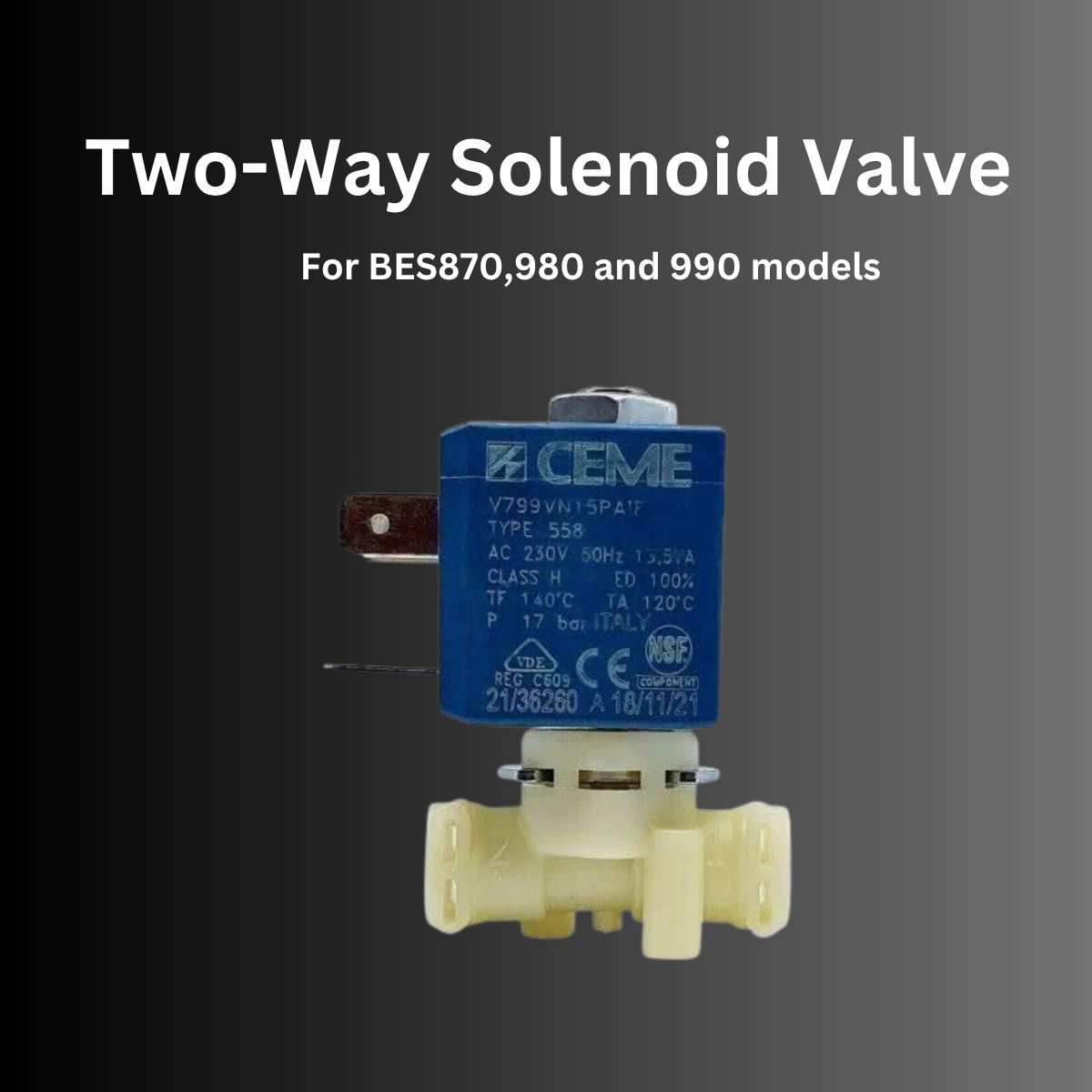

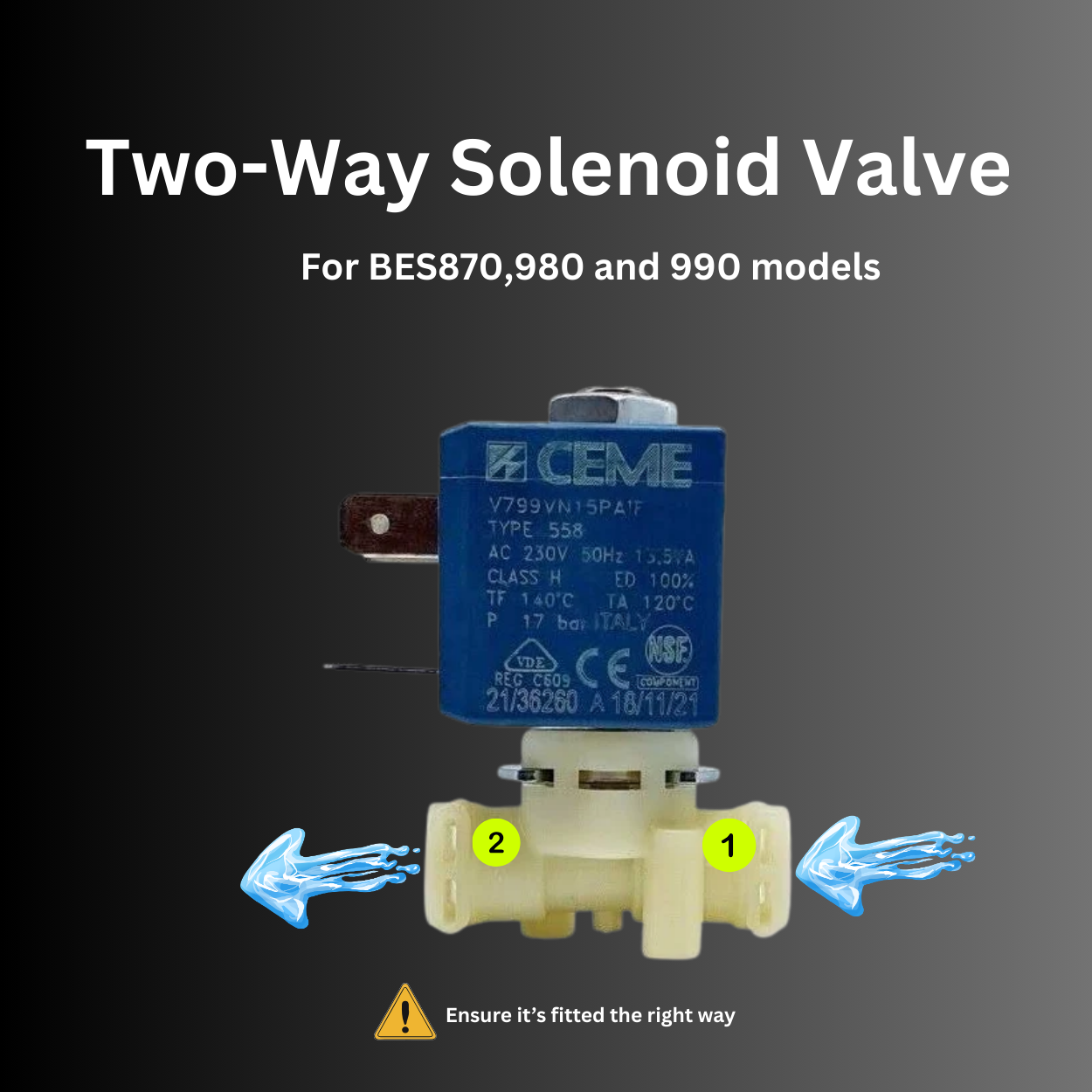

This genuine CEME two-way solenoid valve is used in various Breville and Sage espresso machines to control water flow and manage internal pressure.

• 🧩 On the Barista Express (BES870): Acts as the pressure-relief valve, releasing excess brew pressure back into the system.
• 💧 On Oracle & Oracle Touch models (BES980/BES990): Controls water routing between the brew and steam circuits.

Built to OEM specifications, this valve ensures reliable operation and consistent performance under high-temperature espresso conditions.

Specifications:

• Voltage: 240 V AC (coil easily swappable to 120 V AC if required)
• Power: 13.5 VA
• Class H coil rated for continuous duty (ED 100%)
• Fluid temperature: up to 140 °C
• Pressure range: 0 – 12 bar
• Fittings: Standard push-fit plastic body

Why replace it:
If your machine is leaking water into the drip tray (BES870), or not switching hot water flow on the BES980 or BES990, then replace this part.

Note: The valve body and coil are detachable, allowing easy coil replacement to match your local voltage. If you have an Olab brand solenoid, then you'll need to buy the full assembly instead (not sold here) as this will come with the elbow connectors too.
