BrevTech

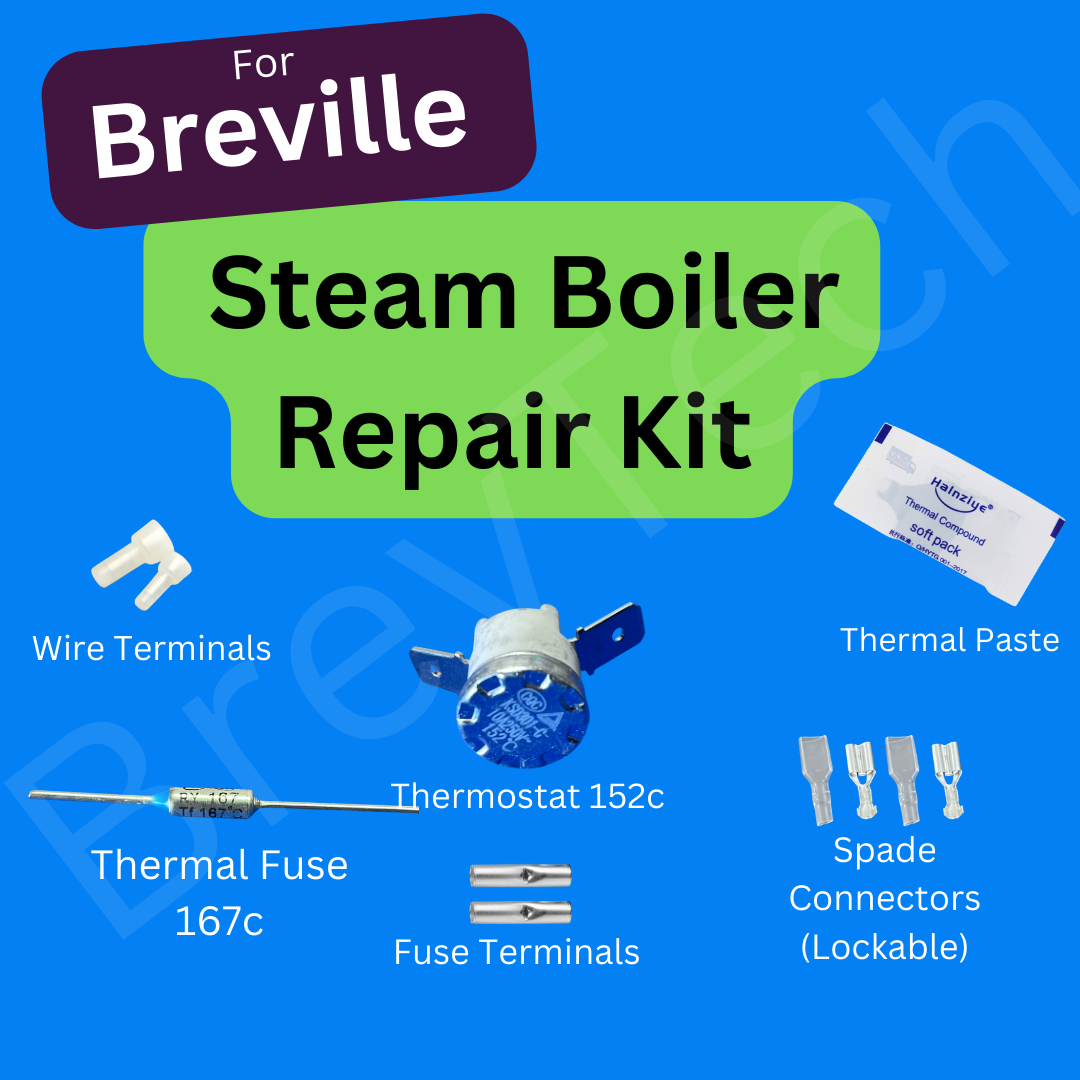

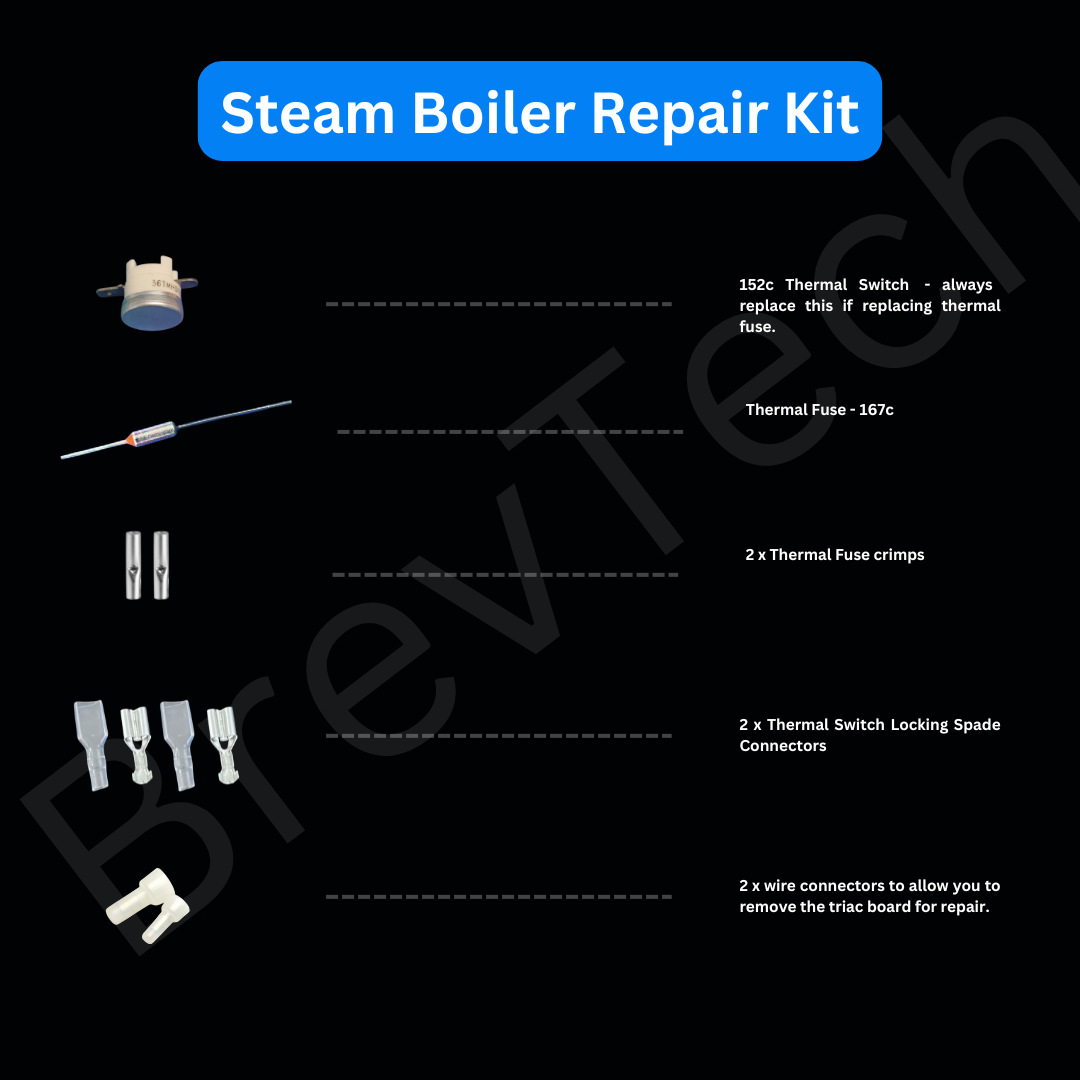

Steam Boiler Repair Kitfor Breville BES900/920,BES980,BES990

Steam Boiler Repair Kit for Breville BES900/920,BES980,BES990

Regular price $16.00 AUD
Regular price Sale price $16.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.

The fault-specific repair kit for Breville and Sage BES9xx steam boiler failures.

If your machine has lost steam boiler heat, is only heating part way, has blown a thermal fuse, or developed the classic 3 beeps of death, this is the focused repair kit to start with.

This kit is aimed at steam boiler circuit faults. If your machine also has several other issues, the larger survival kits may be the better buy.

Fits

  • Breville BES900 / BES920 Dual Boiler
  • Breville BES980 Oracle
  • Breville BES990 Oracle Touch
  • Sage BES / SES 9xx equivalents

Common Symptoms This Kit Is For

  • Steam boiler not heating
  • Steam boiler only heating half way
  • Machine fails after a descale
  • Blown thermal fuse
  • 3 beeps of death
  • Thermal switch damage caused by steam boiler leaks

Technician Notes

Before buying, if possible, it is worth checking whether the steam boiler element itself is healthy. If the house fuse is tripping and you do not have any major leaks, there is a good chance the boiler itself has failed and no repair kit will save it.

I wrote a guide for that here: How to Test Element Health of Your Breville Dual Boiler or Oracle Steam Boiler

If the thermal fuse has blown, always replace the thermostat as well. A blown fuse means the thermostat did not protect the boiler sufficiently, and this is not a job you want to repeat.

This kit now includes a 145°C thermostat. This is intentionally lower than Breville’s original thermostat specification, allowing it to open earlier during an over-temperature condition and helping reduce the likelihood of the thermal fuse blowing. It does not remove the need to diagnose and repair the underlying fault.

‼️ Important - make sure you also fix the underlying fault that caused your fuse to blow. This will be either faulty Probes (descale failed) or shorted triac board (overheated)





Need More Than This?

If your machine has several faults at once, or you want all the common service parts on hand, the full kits are better value:

Useful Video

Steam boiler repair video

Buying Advice

If you are unsure whether you have a steam boiler repair problem, a probe problem, or a triac board problem, message before ordering. The symptoms overlap and it is better to diagnose it properly first.

DIY Warning

This product is intended for experienced users. Electrical repairs carry risk. Use a qualified technician if you are unsure. Full disclaimer: brevtech.store/pages/disclaimer
