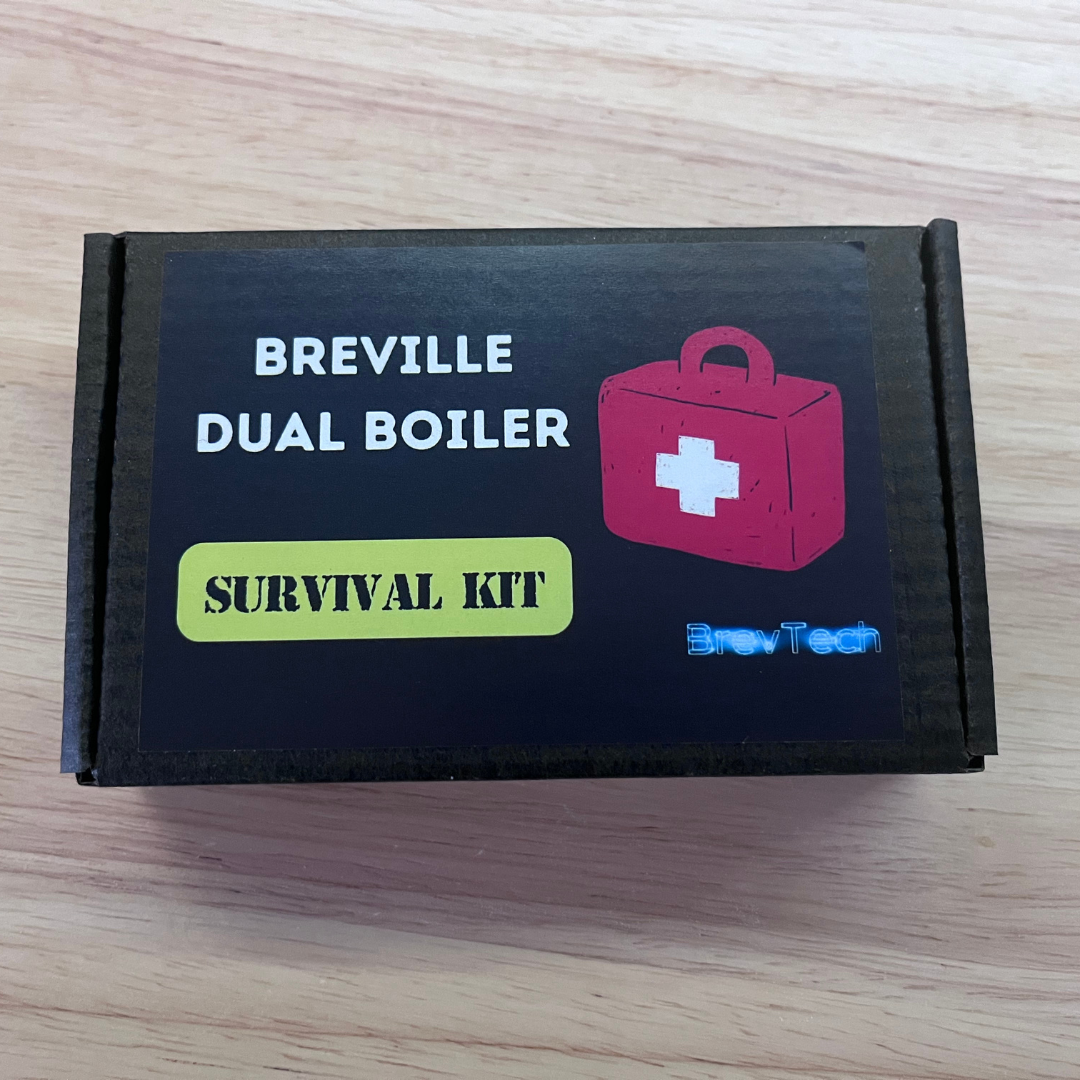

BREVILLE DUAL BOILER SES & BES900/BES920 SURVIVAL / SERVICE KIT (120v 240v)
BREVILLE DUAL BOILER SES & BES900/BES920 SURVIVAL / SERVICE KIT (120v 240v)
Couldn't load pickup availability
The all-in-one service and repair kit for Breville / Sage Dual Boiler BES900 and BES920 machines.
Common service and repair parts for a major service, multiple faults or an unknown service history.
Refurbishing an older or second-hand machine?
I recommend this survival kit plus compatible spare hoses and a Steam Probe Set as an ideal starting package. Hoses and probes are sold separately. The probes suit older-style, pre-2023 boilers; check hose fitment before ordering. Before-you-order checklist.
Fits
- Breville BES900 / BES920
- Sage Dual Boiler equivalents
- 120v and 240v versions
Common Symptoms This Kit Helps Fix
- Loss of pre-infusion
- Buzzing or faulty solenoid behaviour
- Weak pressure
- Leaking seals
- Overheating or underheating
- Dripping steam wand
- Dripping hot water tap
- Steam boiler not filling
- Broken top water lid latch

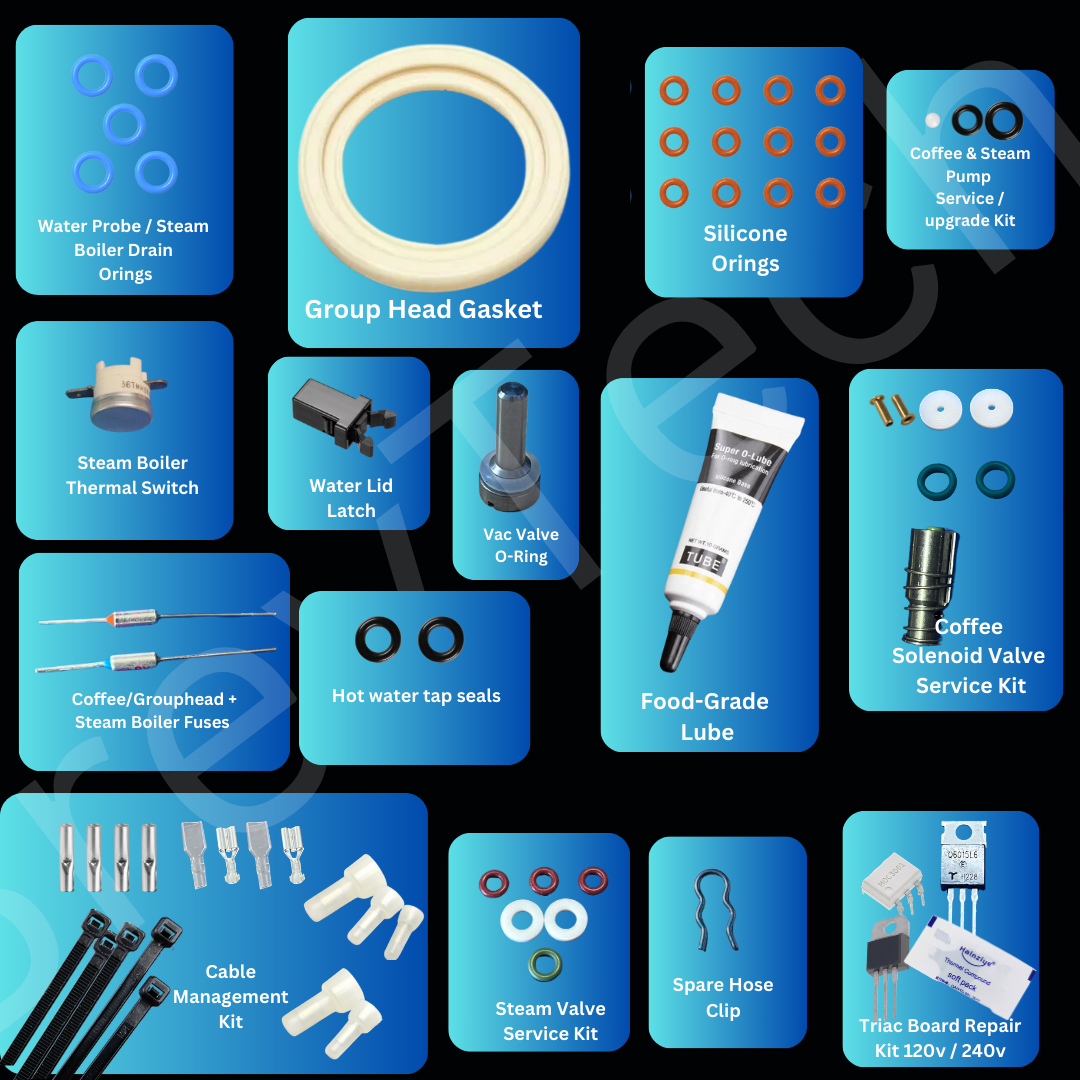

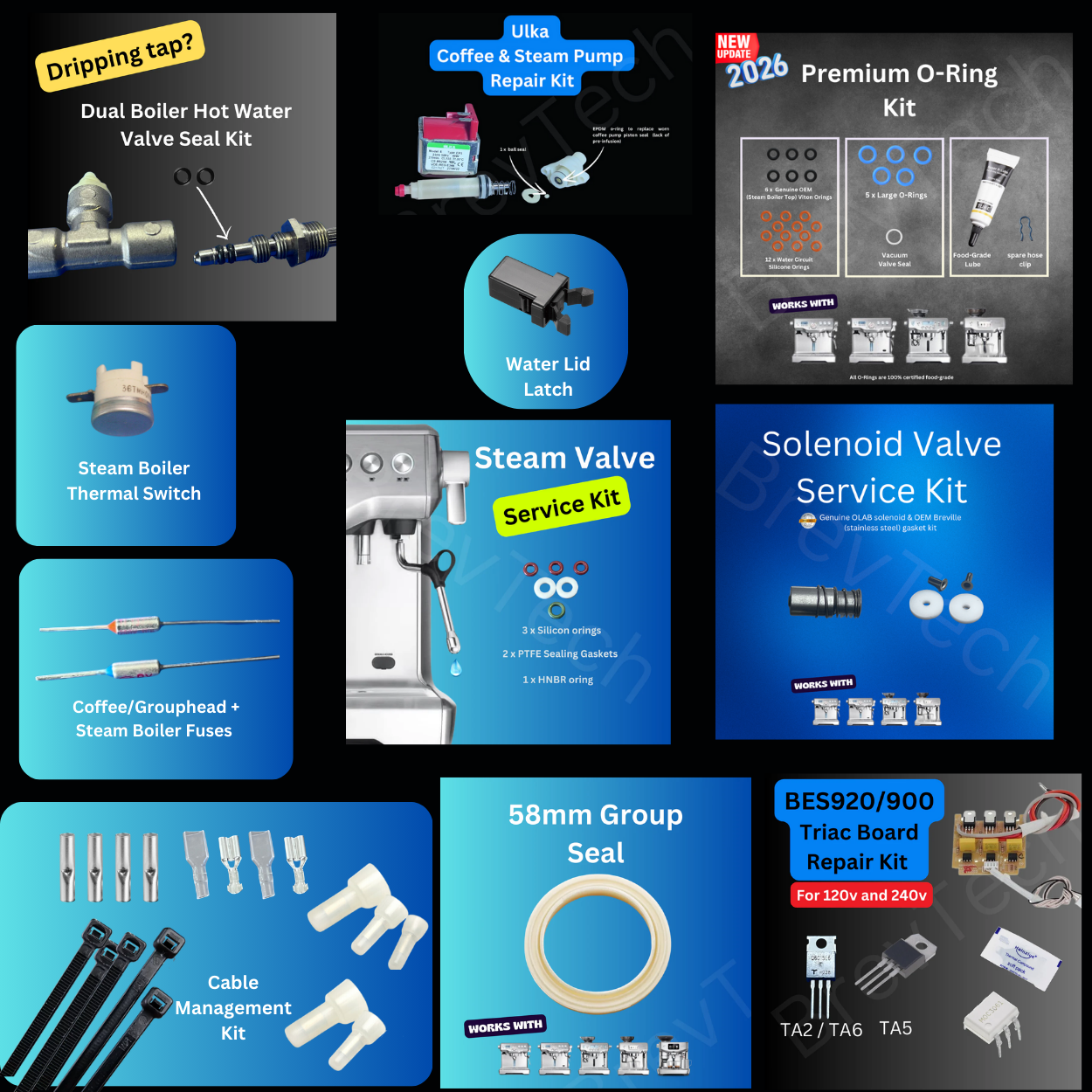

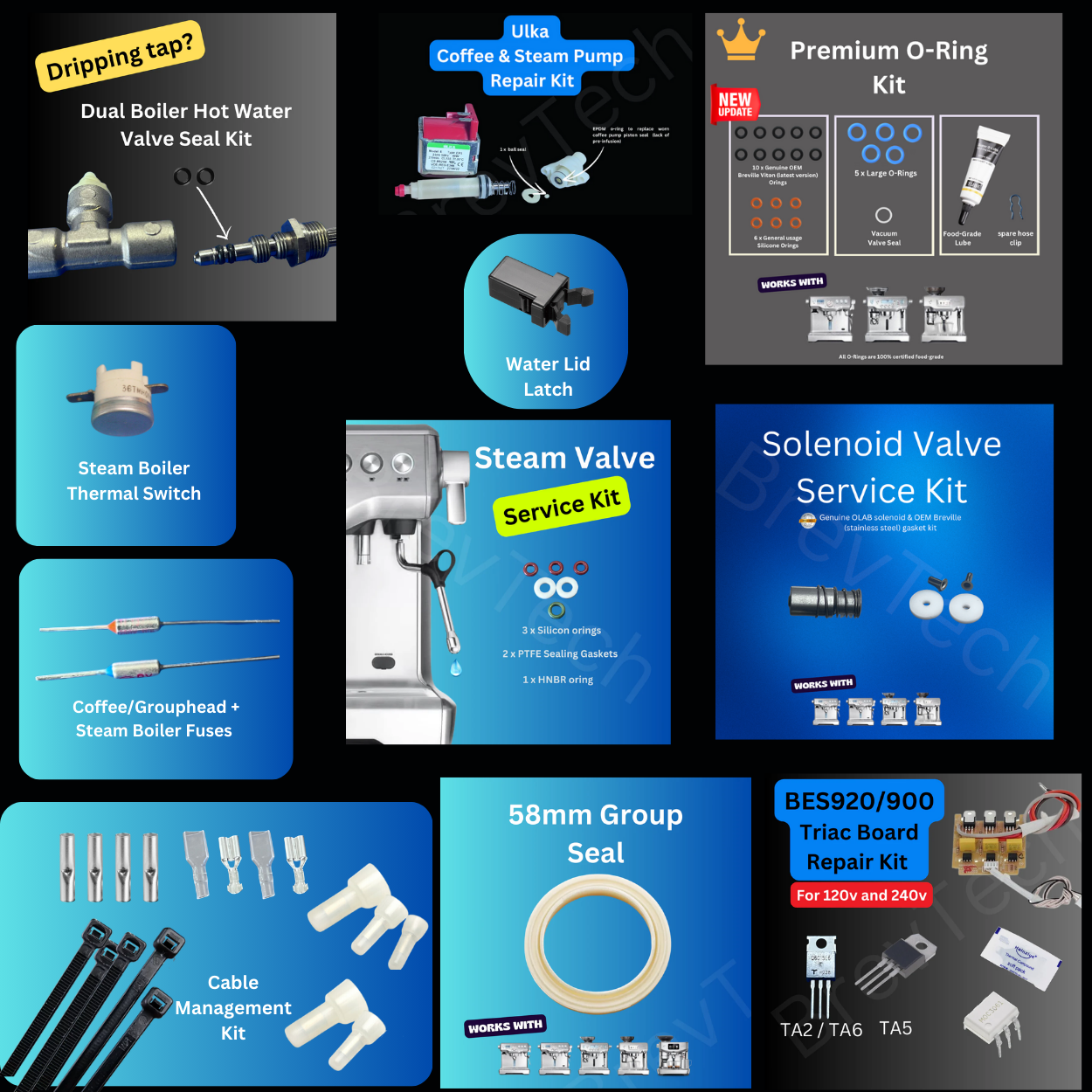

What Is Included

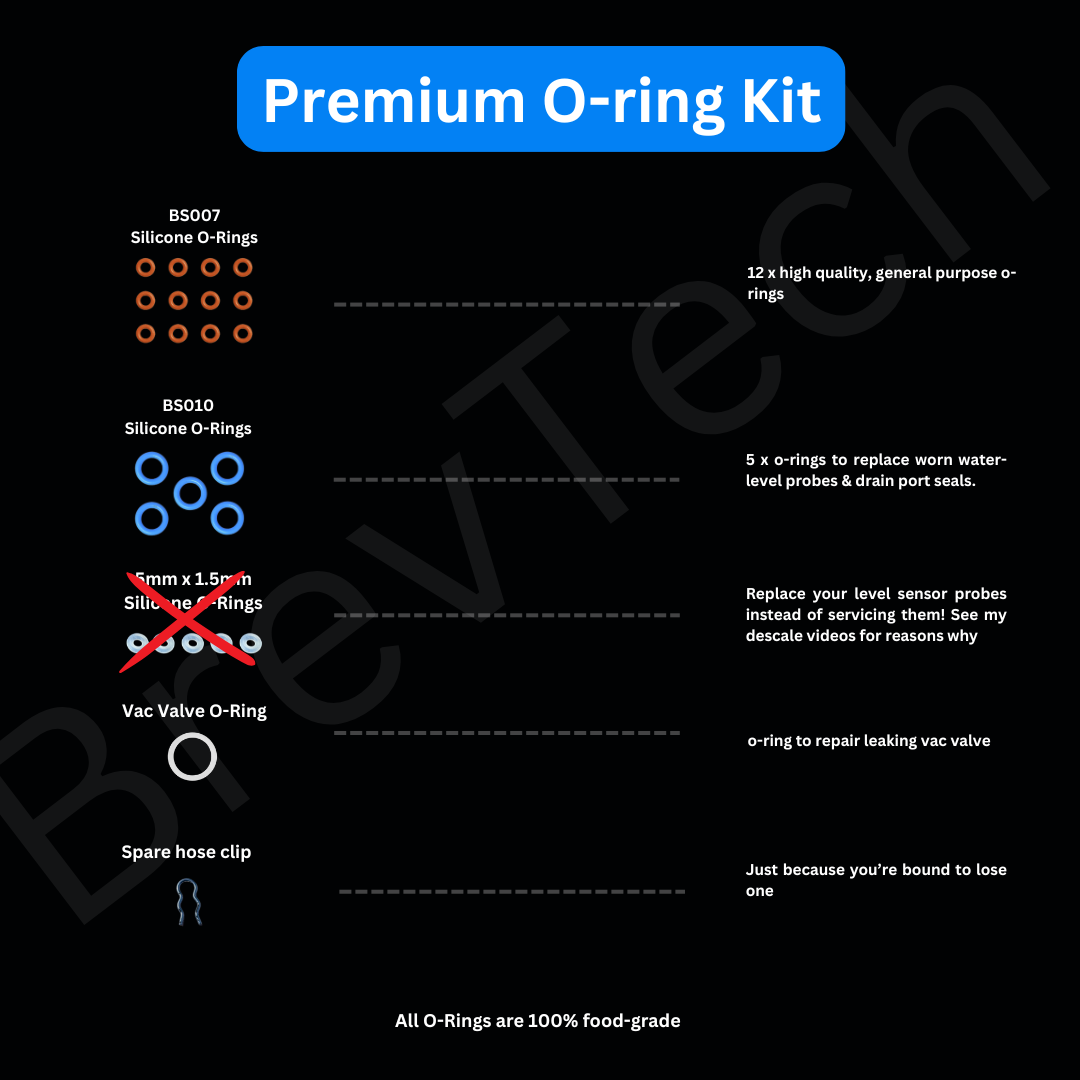

Premium O-ring Service Kit
Watch: checking for leaking O-rings
- 6 x Viton O-rings for high-temperature steam circuit connections
- 12 x general-purpose silicone O-rings for brew circuit connections
- 5 x large O-rings for thermal and water level probes
- 1 x 10 g tube of food-grade silicone grease
- 1 x vacuum valve O-ring
- 1 x spare hose clip

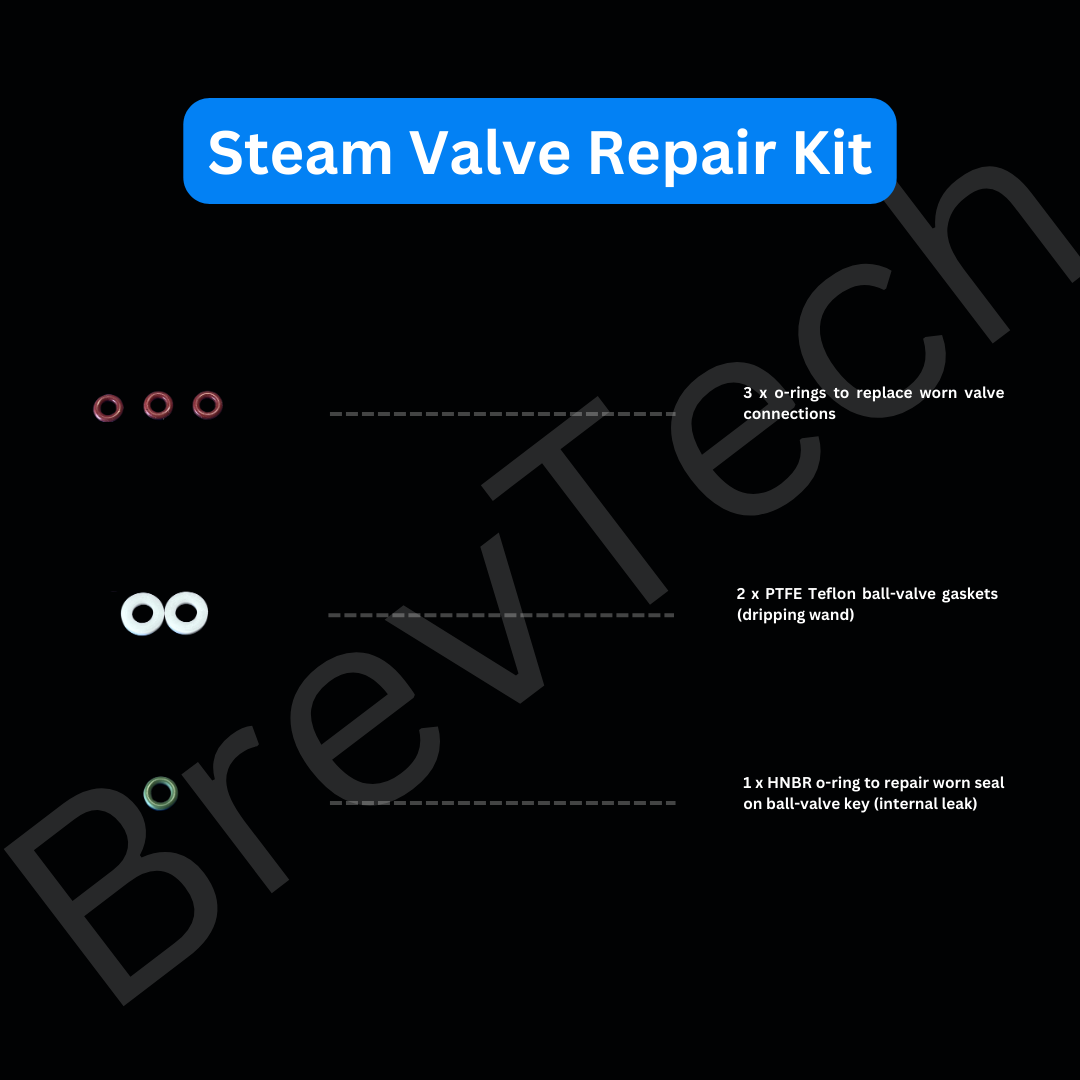

Steam Valve Service Kit
Read and watch: Dual Boiler steam valve seal replacement
Full seal set for the Dual Boiler steam valve to fix most leaking or dripping issues.
Important: the 008 O-ring is HNBR for high-friction use. Do not substitute cheap silicone O-rings in this position.

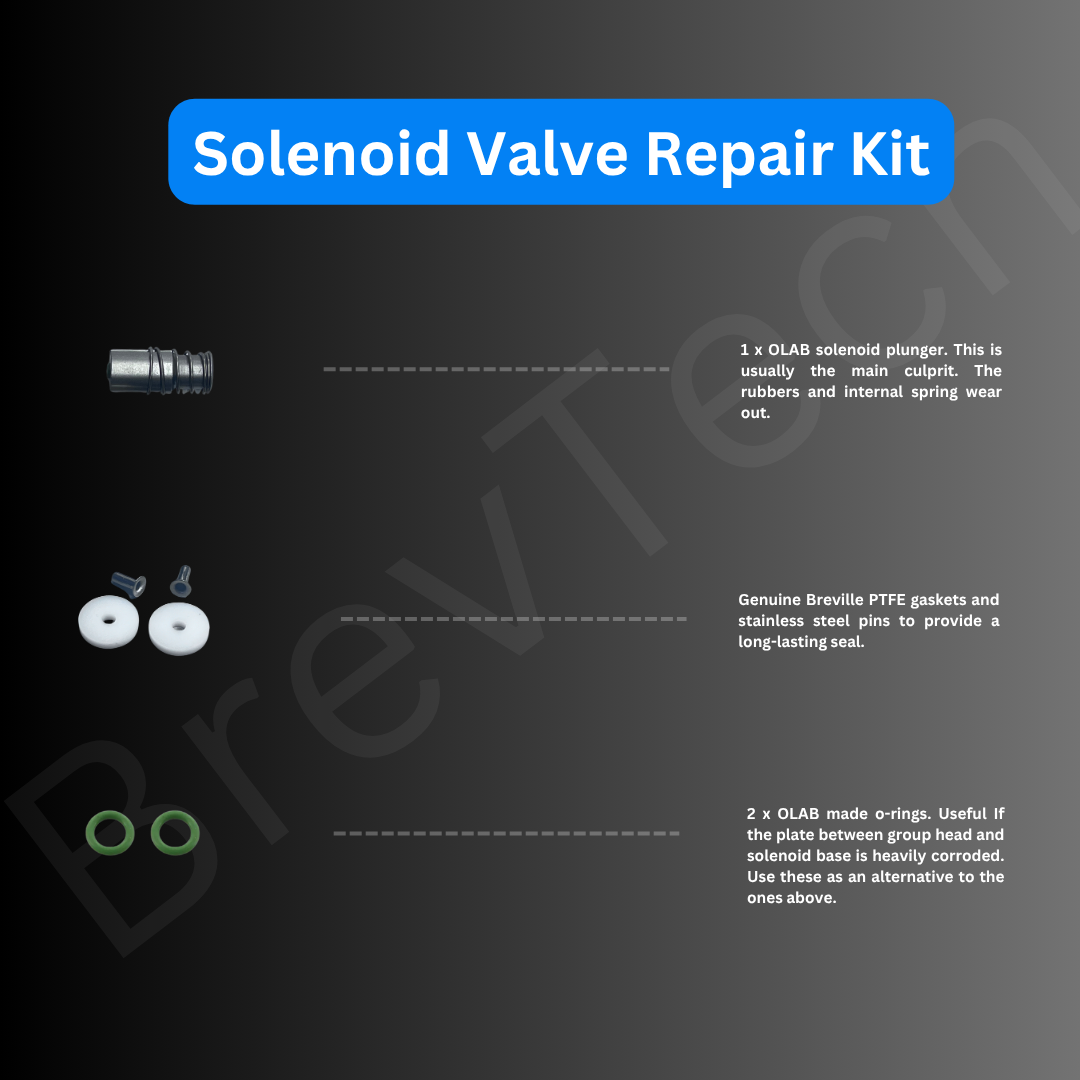

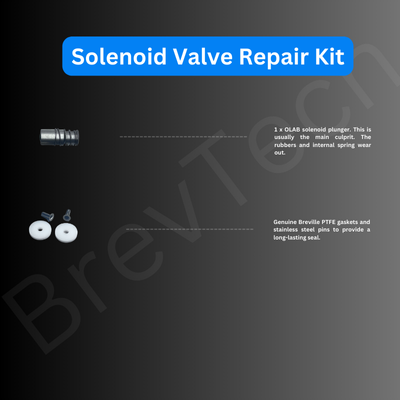

Solenoid Service Kit
Read: OLAB solenoid service kit installation
Replacement solenoid piston plus seals for Dual Boilers with OLAB-branded coffee solenoids. Useful for buzzing and dispensing issues.

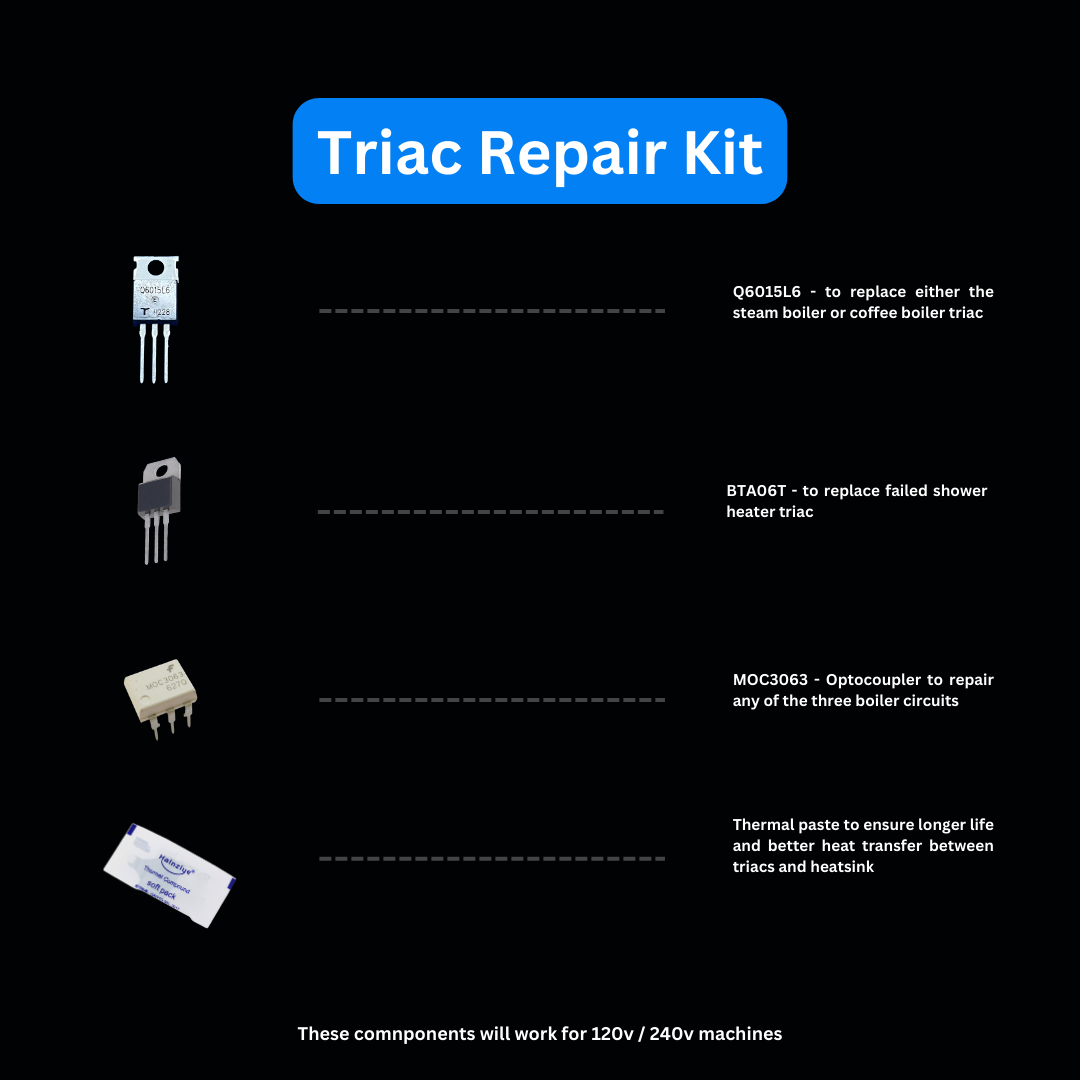

Triac Repair Kit
Watch: Dual Boiler triac board diagnosis and repair
- 2 x replacement triacs
- 1 x opto isolator
This covers the vast majority of triac board faults on the Dual Boiler and is especially useful when heating faults were caused by leaking O-rings.

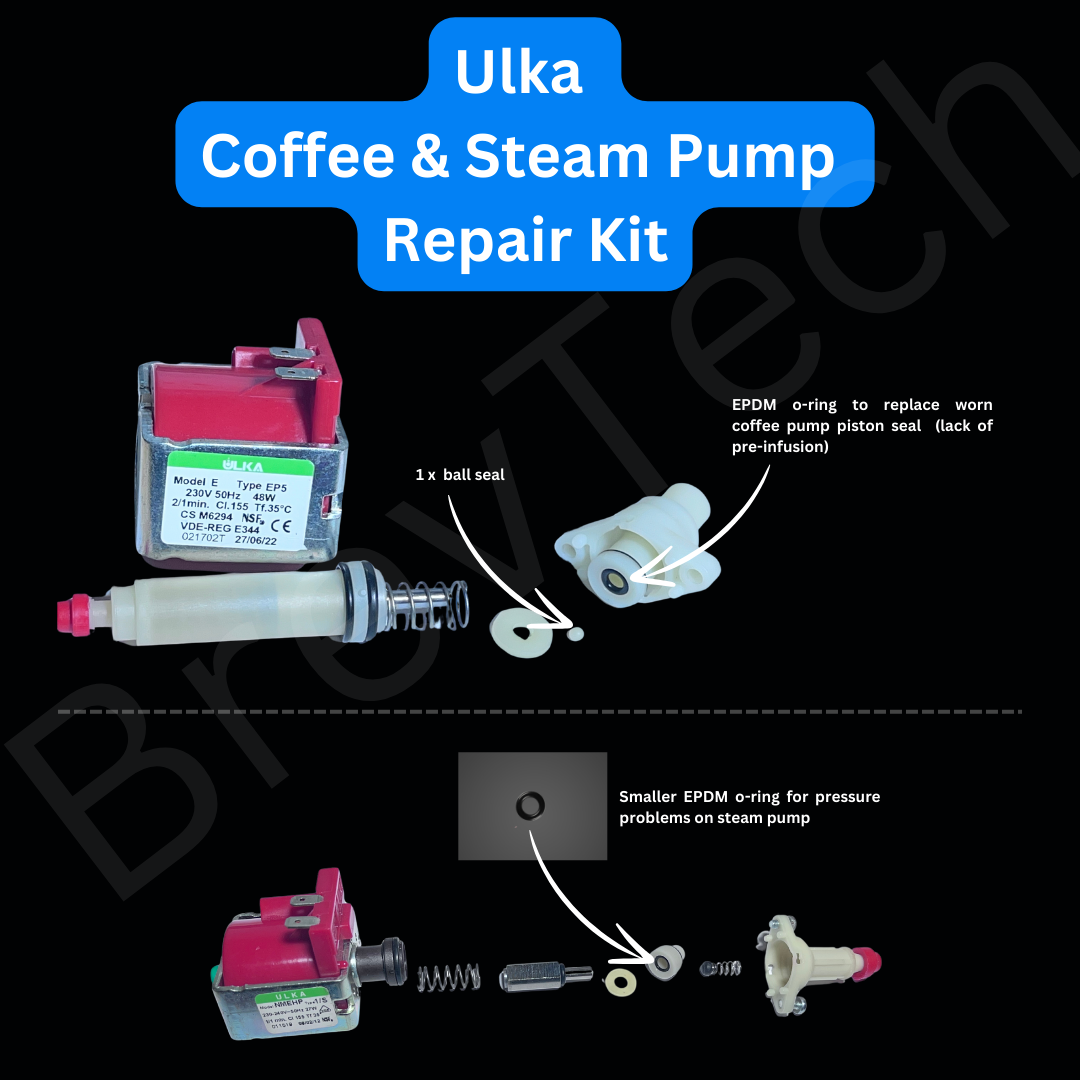

Pump Service Kit
Watch: coffee and steam pump servicing
For weak pressure or loss of pre-infusion on coffee pumps (EP5 / EFP5 / post-2021 EFM) and steam pumps (NMEHP).

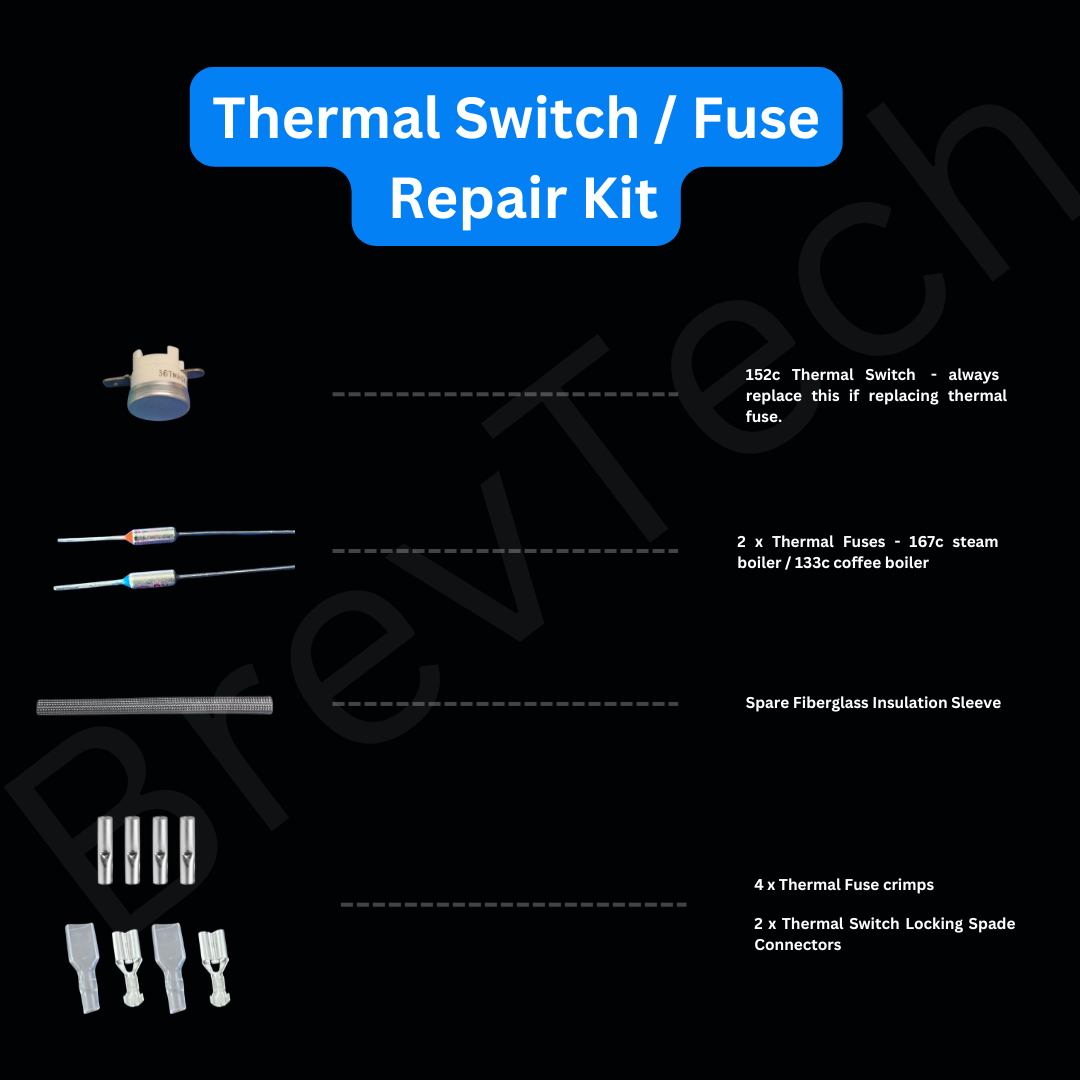

Thermal Fuse and Boiler Protection Parts
Watch: steam boiler diagnosis and repair
Includes both fuse types, a steam boiler thermal switch, locking connectors, and spare insulation tubing so you are covered if the machine has suffered a more serious heating failure.
‼️ Important - if you replace the thermal fuse, make sure you also fix the underlying fault that caused your fuse to blow. This will be either faulty Probes (descale failed) or shorted triac board (overheated)

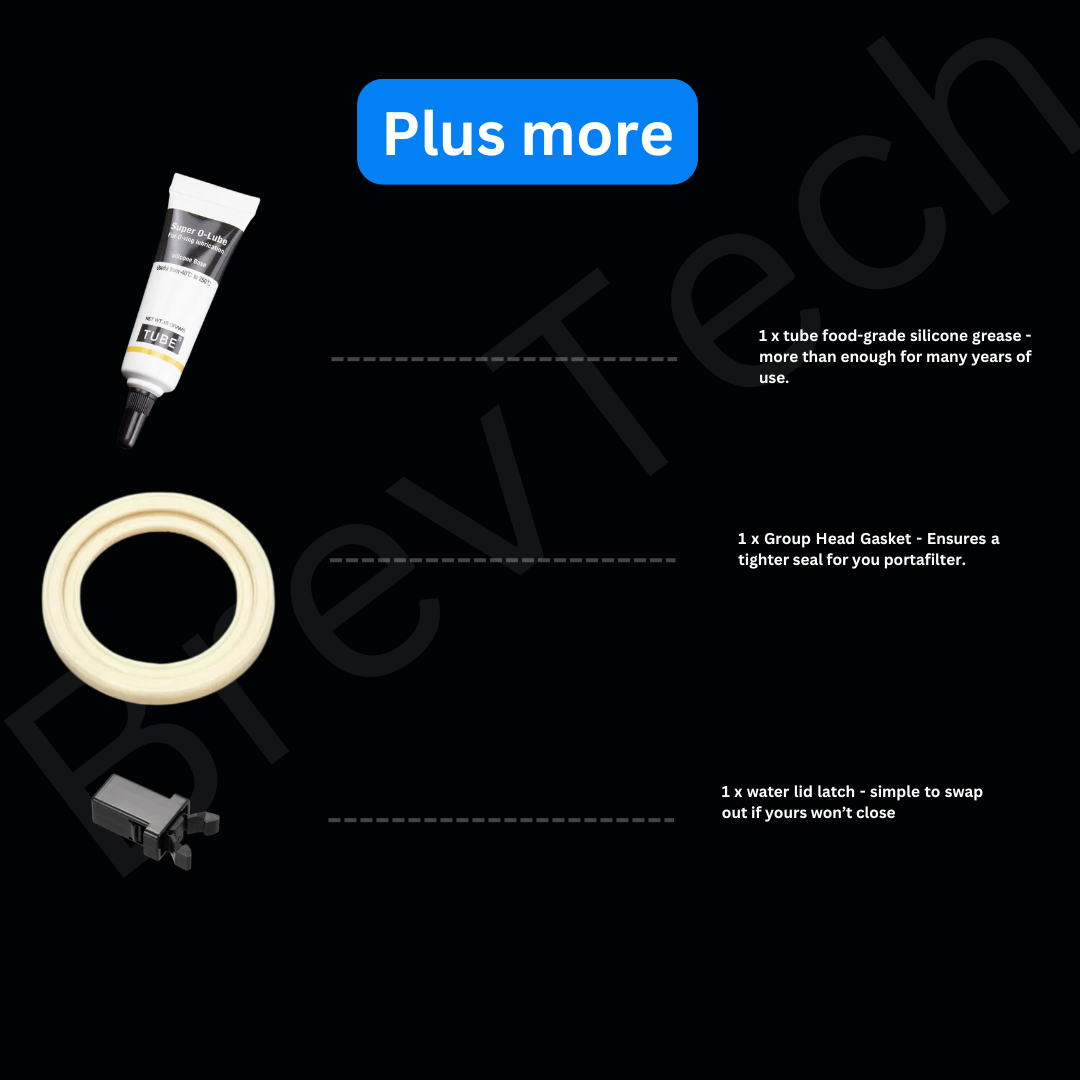

Other Included Parts
- Replacement lid latch — replacement video

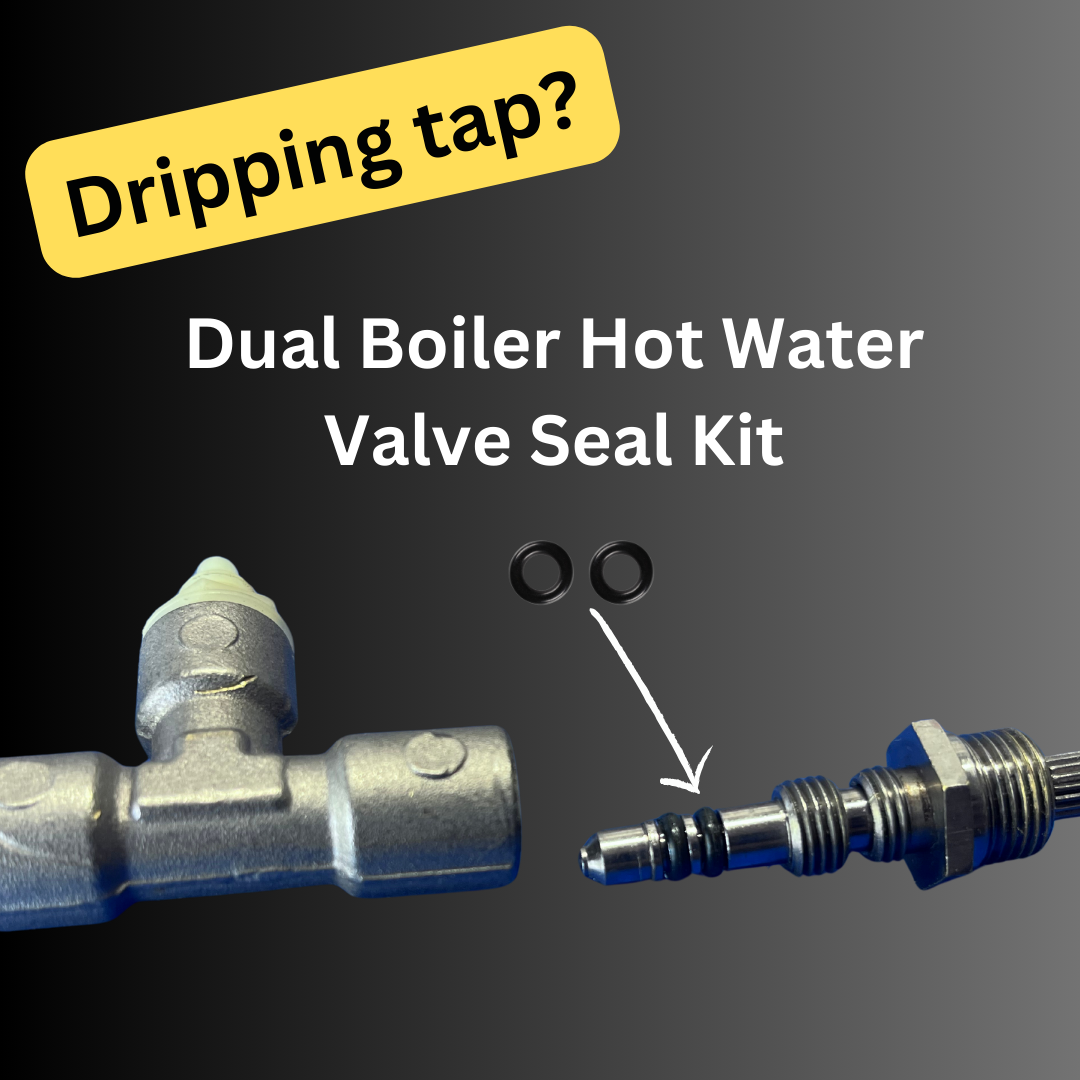

- 2 x hot water tap seals — installation guide
- 1 x group seal
- Cable management / repair connectors
Important Before You Buy
If you are planning a descale or a preventative service, I strongly recommend adding the Steam Probe Set. Re-using old probes is one of the most common reasons these machines fail after descaling.
If you are not sure whether this full kit is the right purchase, message before ordering and I can usually point you toward the correct repair path.
Before-you-order checklist
Unplug and cool the machine before opening it. Internal inspection and electrical diagnosis require a competent repairer.
- Side inlet and hoses: check for scale, corrosion or damaged tubing. A seized fitting may require cutting the hose; have a compatible spare ready. Side-inlet guide. Match hose length, connections and routing. The 20cm hose is unsuitable if the original brass compression fittings must be removed and reused.
- Steam probes: check boiler version and replacement history. The kit includes probe O-rings, not probes. Probe installation.
- Compression fittings: order separate compression seals if loosening these connections; the included O-rings do not replace them. Fitting guide.
- Group head and clips: inspect for a split inner diffuser or damaged/missing hose clips. A group seal and one spare clip are already included.
- Other faults: record heating, pressure, flow or steam-wand errors. The kit does not replace a failed boiler element, complete pump or every valve. Confirm fault, model and voltage before buying extras; ask us in chat for help.
Useful Videos
- Triac board repair video
- Pump service video
- Steam valve / thermal parts related video
- BrevTech YouTube channel
DIY Warning
This product is intended for experienced users. Electrical repairs carry risk. Use a qualified technician if you are unsure. Full disclaimer: brevtech.store/pages/disclaimer
